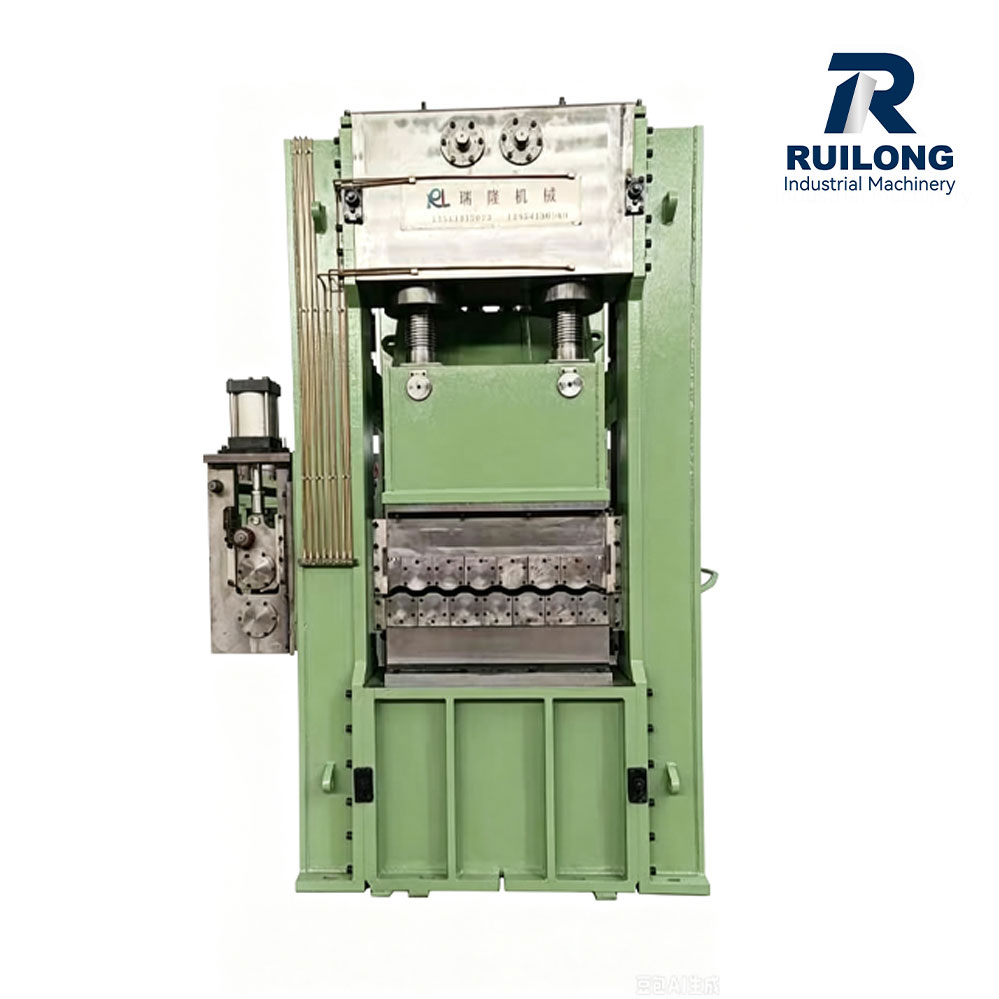

HR Plate 6-1800 Leveling Machine

The hot‑rolled plate 6‑1800 leveling machine is a medium‑heavy straightening machine tailored for 6mm‑thick, 1800mm‑wide hot‑rolled steel coil flattening. It serves as the primary leveling station in Cut To Length Line, Coil Cutting Machine and coil slitting line processing standard hot‑rolled coils for structural and general engineering use. The machine features a five‑high or seven‑high roll arrangement with hardened work rolls capable of removing heavy coil set and thermal distortion from hot‑rolled material. Rubber Sleeve on entry and exit tables protects plate surfaces from handling scratches. After leveling, hot‑rolled strips can proceed to Longitudinal Shear where slitting knife blade cuts them into precise strip widths for downstream fabrication. Hydraulic screw‑down with digital position control allows operators to set exact roll pressure for different yield strengths. The unit integrates with cut to length line and coil Slitting Line automation for hands‑free operation. Suitable for steel service centers, structural steel fabricators and general metalworking shops. Standard capacity: thickness up to 6mm, width up to 1800mm; custom ranges available. All rollers are induction‑hardened for long service life. Factory testing includes flatness verification on actual hot‑rolled coils. We provide worldwide installation supervision and operator training. Replacement slitting knife blade and Rubber Sleeve are stocked for quick maintenance. When connected to Coil Cutting Machine and Longitudinal Shear, this straightening machine forms a reliable hot‑rolled Coil Processing Line delivering flat, ready‑to‑use plates and strips. Its proven design offers excellent value for medium‑gauge hot‑rolled steel processing.
