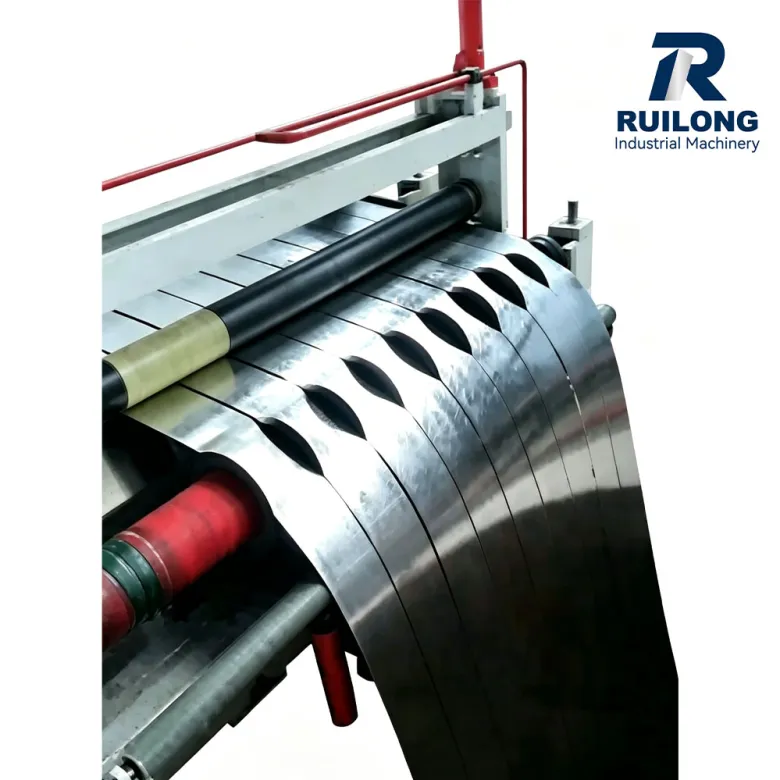

The Longitudinal Shear Rubber Sleeve may be an unsung component, but its role in modern mechanical and structural systems is far from minor. Engineered to accommodate longitudinal movement, absorb vibration, and relieve stress, it helps protect connected parts from premature wear and damage. Its combination of flexibility, strength, and durability supports smoother operation while improving overall system stability and efficiency. Quietly working behind the scenes, this dependable sleeve contributes to longer service life, reduced maintenance needs, and more reliable performance in demanding applications.
A rubber sleeve may look like a simple protective layer, yet its performance often depends on how it handles movement along its length. When equipment shifts, vibrates, expands, or receives a changing load, the sleeve can experience longitudinal shear.
That movement is easy to overlook. A design may look suitable on paper, while the rubber still wears early, slips out of position, or transfers too much force to nearby parts.
I see this issue in applications where a shaft, pipe, cable, pin, or mounting component moves against a rubber sleeve. The sleeve must do more than fill a gap. It must carry load, manage movement, reduce contact damage, and remain stable during repeated cycles.
A longitudinal shear rubber sleeve allows controlled axial movement through deformation inside the rubber wall. The rubber does not need to slide freely across the mating surface for every small movement. It can flex within its own structure.
This working method can help reduce:
The result depends on the design. A rubber sleeve that works well in a low-load guide may not suit a high-temperature bearing support or a system exposed to oil.
One useful way to understand the design is to look at shear strain. In simple form:
Shear strain = axial movement ÷ rubber thickness
If a sleeve must absorb 2 mm of movement and the active rubber layer is 10 mm thick, the approximate shear strain is 0.20, or 20%.
This value does not tell the whole story. Rubber compound, temperature, bonding, cycle rate, sleeve diameter, and support conditions also affect the result. It does give me a practical starting point when I review a drawing or application request.
A thick rubber layer may allow more movement at a lower strain. It may also change the stiffness of the part and affect the available space. A thin layer may create a compact design, but the same axial movement produces more strain.
The key is to balance movement, load, space, and service conditions instead of selecting a sleeve by size alone.
Material selection also matters. Natural rubber may provide useful flexibility and vibration control in some environments. Nitrile rubber can be considered where contact with mineral oil is expected. EPDM is often reviewed for water, weather, and some chemical conditions, though it is not suitable for every fluid. Silicone may suit a wider temperature range in selected applications, but its mechanical behavior must be checked under load.
These are general material tendencies, not automatic approvals. I always compare the compound with the actual fluid, temperature range, pressure, movement pattern, and expected service life.
The sleeve may be bonded to a metal insert, installed as a press fit, or used as a loose component with controlled clearance. Each arrangement changes the way shear is transferred.
A bonded sleeve can transmit movement through the rubber layer and reduce unwanted sliding. The bond must remain secure under repeated shear, temperature changes, and contamination.
A press-fit sleeve depends on the fit between the rubber and the surrounding parts. Too much interference can create high internal stress. Too little interference can allow movement that was not part of the original design.
A loose sleeve may be suitable where easy replacement or free movement is needed. It may also create wear, noise, or fretting if the clearance is not controlled.
I pay close attention to the direction of movement. A sleeve designed for axial shear may not perform well when the same part receives strong radial compression, twisting, or edge loading. Combined movement can change the stress pattern inside the rubber.
A practical review includes these questions:
Take a pump and pipe support as a common example. Thermal expansion can move the pipe along its support points. If a rigid metal contact blocks this movement, the system may transfer extra force into the pump flange, bracket, or pipe joint.
A properly selected rubber sleeve can allow limited movement while reducing direct contact. The sleeve still needs enough strength to support the load, and the design must prevent excessive compression or buckling. The correct solution depends on the pipe weight, movement range, support spacing, temperature, and installation method.
A similar issue appears in machinery mounts. A motor can create small repeated movements during start-up and operation. If the sleeve is too soft, alignment may change. If it is too stiff, vibration may pass into the frame. Longitudinal shear gives the designer a way to set movement resistance through the rubber geometry and compound.
Geometry often has more influence than people expect. Important dimensions include:
Sharp edges can cut or concentrate stress in the rubber. A small radius at the metal edge can reduce local damage. Uneven support can create one-sided loading, which may lead to early wear even when the average load seems acceptable.
Installation affects service life as well. I recommend checking the sleeve, shaft, housing, and tools before assembly. Dirt, burrs, incorrect lubricant, and forced insertion can damage the surface before the machine starts.
The assembly procedure should match the rubber compound and the design. Some lubricants may cause swelling or softening. Some bonded sleeves should not be twisted during installation. A sleeve should not be pulled over a sharp edge unless the design allows that method.
Alignment deserves attention after installation. If the shaft or housing sits at an angle, the sleeve may carry constant side loading. The machine may still run, yet the rubber will work harder in one area. This can show up as uneven wear, surface cracking, or a polished band on one side.
Inspection can be simple and regular. I look for:
The appearance of one small crack does not always mean immediate failure, but it should lead to a check of the cause. Heat, ozone, misalignment, chemical exposure, high strain, and installation damage can produce similar marks.
A replacement should match the original operating conditions, not only the outside dimensions. Two sleeves with the same diameter may have different rubber hardness, bond strength, shear stiffness, and fluid resistance.
When I review a supplier drawing, I look for a clear description of the rubber compound, hardness range, metal grade, bonding method, tolerances, and test conditions. A drawing that lists only size and color leaves too many design questions open.
Testing can include static compression, axial displacement, repeated shear cycles, temperature exposure, fluid immersion, and pull-off checks for bonded parts. The right test depends on the main failure risk. A sleeve used in a clean indoor guide may need a different test plan from one installed near oil, heat, and continuous vibration.
Longitudinal shear rubber sleeves are not a universal fix. They can support controlled movement, but they cannot correct poor alignment, excessive load, unsuitable materials, or an undersized structure. Their value comes from matching the rubber behavior to the movement pattern.
My practical approach is simple: define the movement, calculate the basic strain, check the combined loads, select a compatible material, review the installation method, and inspect the part under actual service conditions.
A sleeve performs well when its job is clearly defined. It should not be treated as a filler or a low-cost replacement for a complete mechanical design. When the axial movement, environment, and load are understood, the sleeve can become a useful part of the system rather than a hidden source of premature wear.
When a pipe, shaft, or flexible joint moves along its length, the rubber sleeve must do more than cover the connection. It must allow controlled movement, reduce vibration, keep moisture and dirt away from the joint, and handle repeated shear stress without splitting.
That is why longitudinal shear rubber sleeves matter. A sleeve that looks suitable from the outside can still fail if its rubber compound, wall thickness, fit, or movement range does not match the working conditions.
I usually start with the movement problem rather than the sleeve itself. The right question is not, “Which sleeve is cheapest?” It is, “What movement will the sleeve face during normal operation?”
Longitudinal shear occurs when two connected parts move in different directions along their length. The rubber sleeve deforms between these parts. The material stretches, compresses, or shifts through its wall instead of allowing the connection to separate suddenly.
This movement can appear in:
A rubber sleeve can absorb part of this movement because rubber is flexible. Its performance depends on the rubber grade, sleeve design, temperature, load, and installation quality.
A rigid connection can transfer vibration and movement directly into nearby parts. Over time, this may place stress on bolts, flanges, bearings, pipes, or welded areas.
A properly selected longitudinal shear rubber sleeve can help control that stress. It may:
The sleeve does not remove every load from the system. It works as one part of the joint. The surrounding hardware still needs suitable support, alignment, and fastening.
I often see users focus on hardness alone. A harder rubber is not always the better choice. It may resist deformation, but it can also transfer more vibration to connected parts. A softer compound may provide more movement, yet it may not suit high loads or high temperatures.
The rubber compound should match the operating environment. Key factors include:
For example, a sleeve used near an oil-lubricated pump may need an oil-resistant rubber compound. A sleeve installed outdoors may need suitable resistance to ozone and weather exposure. A general-purpose compound may not perform well in either condition.
The material name alone is not enough. I ask the supplier for technical data that covers hardness, tensile strength, elongation, temperature range, and chemical resistance. The test method should also be stated, since results can vary between testing standards.
A sleeve that is too tight may remain under constant strain. A sleeve that is too loose may rub against nearby parts or fail to keep the connection sealed.
Before ordering, I check:
The design should account for movement during startup, shutdown, temperature changes, and normal operation. A pump may appear stable while running, yet movement can increase during acceleration or when the system experiences pressure changes.
A common example is a pump connected to a pipe system in a plant. The pipe expands when the temperature rises, while the pump base remains relatively fixed. If the rubber sleeve has enough longitudinal shear capacity, it can absorb part of the movement. If the sleeve is too short or forced into an unsuitable position, the stress may move to the flange, bolts, or pipe support.
Even a suitable sleeve may fail when installed under poor conditions. I check the following points before fitting:
Over-tightening a clamp can cut into the rubber. Under-tightening can allow movement between the sleeve and the connection. Both conditions can create local wear.
Installation records are useful for equipment that operates continuously. A simple record can include the sleeve size, rubber grade, installation date, clamp setting, and operating temperature. That information helps when the part needs inspection or replacement.
Regular inspection may reveal problems before the connection is damaged. I look for:
A small surface mark does not always mean immediate failure. The location, depth, movement, and operating conditions should be checked. Replacing the sleeve without correcting misalignment may lead to the same problem again.
I prefer a supplier that can explain the design rather than only quote a part number. Useful questions include:
A clear drawing often prevents more problems than a long product description. It should show dimensions, tolerances, material, hardness, and any special surface or fastening requirements.
Longitudinal shear rubber sleeves matter because they manage movement at a point where rigid parts may transfer stress directly into the system. Their value comes from the correct combination of material, size, movement capacity, installation, and inspection.
When I select one, I start with the actual operating conditions and the movement pattern. A sleeve chosen from appearance or price alone may not protect the joint. A sleeve matched to the equipment can support smoother operation and help reduce avoidable damage around the connection.
A machine can look well designed on the outside and still create noise, movement, and wear once it starts running. Pumps shake the floor. Compressors send low-frequency vibration through steel frames. HVAC units transfer movement into walls and work areas.
Many teams focus on the motor, bearings, and control system. I often see one small component receive less attention than it deserves: the vibration isolator.
It may sit under a machine, inside a mount, or between two connected parts. Its job is simple to describe, yet its effect reaches across the whole installation. A suitable isolator can help reduce transmitted vibration, protect nearby equipment, and make the working space more comfortable.
That makes it an unsung hero of vibration control.
A vibration isolator creates a controlled separation between a vibrating source and the structure around it.
The source may be:
The isolator usually combines a flexible material, such as rubber, with a metal housing, spring, pad, or mounting plate. When the machine operates, the isolator absorbs part of the movement and limits how much force reaches the floor or frame.
The result depends on several factors:
A mount that works well under a steady load may not suit a machine with frequent starts, stops, or changing speeds. Matching the isolator to the actual operating condition matters more than choosing a product based on appearance.
I once reviewed a pump installation where the pump itself had passed its basic inspection. The motor ran, the flow rate was within the target range, and the frame looked strong.
The problem appeared after several weeks. Operators noticed a humming sound in the nearby office. Fasteners on the pipe connection needed repeated adjustment. A support bracket showed early signs of wear.
The team had focused on the pump and pipe design but had not checked how vibration moved through the mounting points. The original pads were too stiff for the operating range. They supported the weight, but they did not provide the level of isolation the installation required.
A replacement mount did not solve every issue by itself. The team also aligned the pump, checked the pipe supports, and corrected a small imbalance in the rotating assembly. The combined work reduced the vibration reaching the building structure.
This example shows a useful point: an isolator is not a substitute for proper machine alignment. It is one part of a complete vibration control plan.
I start with the machine, not the catalogue.
Find the total weight carried by the mounts. Include the machine, motor, fluids, guards, and any parts that remain attached during operation.
Divide the load across the planned number of isolators. Do not assume every mount carries the same force. Uneven weight distribution can overload one side and leave another mount underused.
Rotating speed gives a useful starting point for vibration assessment. A machine running at 1,800 revolutions per minute produces a different vibration pattern from a unit running at 900 revolutions per minute.
Variable-speed equipment needs wider consideration. The mount should support the machine through the full working range, not only at one selected speed.
A constant load is easier to manage than a changing load.
I ask:
A press, crusher, or stamping machine may require a different mounting approach from a steady-running fan.
The machine may be isolated while connected pipes, cables, ducts, or conduits create another path for vibration.
A rigid pipe attached directly to a vibrating pump can carry movement around the isolator. Flexible connectors may help, but they must be selected for the pressure, temperature, and movement involved.
The same check applies to cable trays, air ducts, and support frames.
Rubber and other flexible materials respond to their surroundings. Heat, oil, chemicals, moisture, sunlight, and outdoor exposure can affect service life.
I review the working temperature, contact substances, cleaning process, and installation location before choosing the material. A mount used near hot equipment may need a different compound from one installed in a clean indoor room.
Different designs suit different machines and loads.
Rubber mounts are often used for fans, motors, pumps, and light industrial equipment. They are compact and can provide both support and vibration reduction.
Their performance changes with hardness, shape, load, and temperature. A harder mount is not automatically a better choice. It may support more weight while transmitting more vibration.
Spring systems can support heavier equipment and work well where low-frequency vibration requires attention. They are common under air-handling units, chillers, and larger mechanical equipment.
A spring system may need restraint against movement, especially where the machine can shift during startup or an external event.
Pads are useful under equipment bases, rails, and frames. They are easy to install and can help spread load across a wider area.
Pad thickness, density, and compression affect performance. A pad that is too thin may provide little isolation. A pad that compresses too much can affect machine level and alignment.
Wire rope designs can handle movement in several directions and may suit equipment exposed to shock or changing loads. They are used in transport, electronics, test equipment, and industrial systems.
Selection should account for the direction of movement, supported weight, and expected shock level.
Even a suitable isolator can perform poorly when installed without care.
I keep several checks in the installation process:
A frequent mistake is compressing a mount beyond its working range. The machine may appear stable, but the isolator loses the movement needed to reduce vibration.
Another mistake is using a soft mount without checking machine stability. Excess movement can create alignment problems, pipe stress, or contact with nearby parts.
Good vibration control balances isolation with support.
I do not judge performance by touch alone. A machine can feel smooth near the motor and still send vibration into the building.
Useful checks include:
The key question is not only, “Has the machine become quieter?”
I also ask, “Has the vibration path to the surrounding structure been reduced?”
For critical equipment, baseline measurements create a useful reference. Later readings can show whether the mounting system remains stable or needs attention.
When I prepare a mounting plan, I write down the working conditions before contacting a supplier. The list includes machine weight, mount quantity, operating speed, load changes, temperature, chemicals, floor type, and connected services.
Clear information leads to a better discussion. It gives the supplier a chance to review the actual application instead of guessing from a product photo or a short description.
The right isolator may not be the largest, softest, or most expensive option. It is the one that matches the load, movement, environment, and connection design.
Vibration control often depends on parts people barely notice. A small mount under a machine can influence noise, maintenance, alignment, and the condition of the surrounding structure.
When I treat the isolator as part of the system rather than a simple accessory, the installation becomes easier to evaluate and maintain. That quiet component may never attract attention during normal operation. Its value shows in the problems that do not appear.
For any inquiries regarding the content of this article, please contact ruilong: lisa@ruilongmachine.com/WhatsApp +8613953857819.
International Organization for Standardization — 2008 — Mechanical Vibration and Shock — Resilient Mounting Systems — Basic Concepts and Application
ASTM International — 2021 — Standard Test Methods for Rubber Property — Durometer Hardness
International Organization for Standardization — 2019 — Rubber Vulcanized or Thermoplastic — Determination of Compression Set
International Organization for Standardization — 2024 — Rubber Vulcanized or Thermoplastic — Determination of the Effect of Liquids
Peter A Claussen — 2017 — Vibration Isolation and Control in Industrial Machinery
James E Shigley and Richard G Budynas — 2020 — Shigley’s Mechanical Engineering Design
