A cut-to-length line that misses its target by even 5% can create excessive scrap, production delays, and costly quality issues. This article explores the most common causes of inaccurate cutting, from improper calibration and incorrect machine settings to material inconsistencies, component wear, and insufficient maintenance. Small deviations in leveling, feeding, measuring, or shearing can quickly affect the entire production process. By systematically inspecting the line, verifying operating parameters, and maintaining key components, manufacturers can identify the source of errors before they become major problems. The result is improved cutting precision, reduced material waste, fewer interruptions, and more reliable production performance. Consistent accuracy is not achieved by adjustment alone—it depends on proper setup, stable materials, well-maintained equipment, and disciplined quality control.
A cut-to-length line can look stable on the production floor while still missing the target by 5%. The error may appear small on one sheet, yet it can create problems across a full coil: extra scrap, wrong part dimensions, rework, and customer complaints.
I have found that length accuracy rarely depends on one setting alone. The result comes from the full process, from measuring the incoming material to feeding, cutting, and checking the finished sheet.
When I see a length problem, I do not change the encoder setting right away. I measure the same batch several times and record:
The error pattern tells me where to look.
A steady error usually points to a wrong scale factor, encoder setting, or machine reference. A changing error may come from material slip, uneven tension, vibration, or a damaged measuring wheel. If the first sheets are close and later sheets become longer or shorter, thermal expansion and mechanical wear deserve attention.
For example, a line set to cut 2,000 mm may produce sheets between 1,990 mm and 2,010 mm. That is not the same problem as producing every sheet at 2,010 mm. The first pattern suggests repeatability trouble. The second suggests a fixed calibration offset.
The encoder and measuring wheel control the length feedback. A small error in the wheel diameter can create a larger error over many cuts.
I check these points:
A clean wheel does not always solve the issue. Excessive pressure can deform soft material. Low pressure can allow slipping. The correct pressure should hold the material without adding visible marks or changing the feed path.
I also compare the displayed length with a calibrated steel rule or a verified measuring device. A tape measure may be useful for a quick check, but it may not provide enough repeatability for machine calibration.
Material tension affects how the strip moves through the line. If the payoff, straightener, and pinch rolls do not work together, the strip may stretch under load and relax after cutting.
I watch the strip while the line runs:
A steel coil with higher yield strength may respond differently from a softer coil, even when both have the same thickness. A setting that works for one material grade may create slip or stretch with another.
I record material grade, thickness, width, and coil weight for each job. This gives the operator a better reference than using one tension value for every order.
The cut itself can affect the measured length. If the shear closes before the strip reaches a stable position, the line may create short or long sheets.
I check:
A fast line is not always a more accurate line. A small delay in the brake or a worn blade can cause the material to move during cutting. The problem may become more visible at higher speeds.
Blade condition also matters. Uneven clearance can pull the material during the cut. Burrs, angled cuts, and visible edge distortion are signs that the shear needs inspection.
Long production runs generate heat in motors, bearings, hydraulic systems, and electrical cabinets. The machine frame and measuring parts may also change slightly as temperature rises.
I compare measurements during the early part of a run with measurements taken after the line has operated for a period of time. A growing error during warm-up may point to thermal movement, oil temperature, or control compensation.
Mechanical looseness can create a different pattern. I inspect couplings, mounting bolts, guide rollers, and the encoder bracket. A small amount of movement at the measuring point can create repeated length variation.
A practical check does not need a complex system. My usual process looks like this:
Changing several settings together makes the cause harder to identify. I also keep the previous values, so the line can return to a known condition if the new setting creates another problem.
For quality control, the inspection method should match the customer tolerance. If the order requires tight length control, the plant needs a defined measuring tool, reference point, inspection frequency, and record format.
A sheet processing plant found that its 2,500 mm cuts were often around 2,510 mm. The operator reduced the target length in the controller, which improved one batch but created short sheets on another material grade.
The deeper check showed two causes. The measuring wheel had worn down, and the pinch roll pressure was too low during acceleration. Replacing the wheel restored the scale reference. Adjusting the pinch roll pressure reduced slip. The operator then created separate feed settings for different material thicknesses.
The issue was not solved by one number in the control panel. It required a check of measurement, feeding, and cutting together.
When a cut-to-length line misses accuracy by 5%, I treat the number as a signal, not a diagnosis. I look for the error pattern, verify the measuring system, review material tension, inspect the shear sequence, and compare results under different operating conditions.
This approach takes more care than changing one parameter, but it gives the production team a clearer path toward stable length control and lower scrap.
A 5% discount can look attractive when you are planning a cut-to-length line purchase. It may reduce the quoted equipment price, but it does not solve poor leveling, unstable feeding, long setup time, or high material waste.
I have seen buyers focus on the discount while overlooking the daily cost of a line that cannot keep the required speed and accuracy. A better approach is to check the full production process before comparing prices.
I usually begin with four questions:
A small issue in one section can affect the whole line. A worn roller may create marks on the material. Poor alignment may cause uneven feeding. A slow shear can limit output even when the decoiler and leveler have enough capacity.
The result may include:
The quoted machine price is only one part of the cost.
A cut-to-length line should match the materials you process now, not only the materials listed in a sales brochure.
Review:
A line designed for light-gauge steel may not perform well with thicker or stronger material. An aluminum line may need different contact surfaces and handling settings. Stainless steel may require extra care to reduce surface marks.
I would prepare a simple material table before speaking with a supplier. This table gives both sides a clearer view of the required configuration.
| Item | Example requirement |
|---|---|
| Material | Carbon steel |
| Thickness | 0.8–3.0 mm |
| Width | 1,250 mm |
| Coil weight | Up to 10 tons |
| Sheet length | 500–4,000 mm |
| Length tolerance | Based on production needs |
| Target output | Based on actual order volume |
The figures should come from your production records. Guessing can lead to an oversized line, an undersized line, or a setup that does not fit your work.

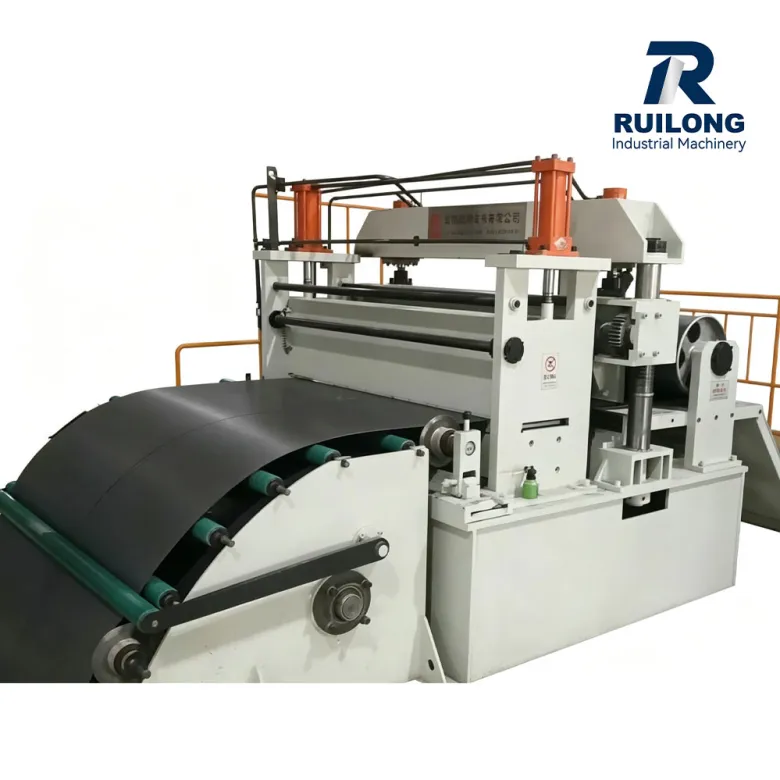

A cut-to-length line normally includes several connected sections:
Each part affects the next one.
A powerful decoiler cannot make up for an unsuitable leveler. A fast feeder cannot improve a shear that needs frequent adjustment. A precise shear may still produce inconsistent sheets if the material moves during feeding.
I prefer to review the line as one process. The question is not only, “What is the machine price?” The better question is, “Can every section support the work I need to complete?”
Waste often receives less attention than the equipment price. It should be part of the calculation.
Suppose a service center processes 500 tons of sheet each month. If poor feeding and inaccurate cutting create 1% extra scrap, the material loss can be much higher than a small equipment discount over the operating life of the line.
The same review should include:
A short production test can help. Ask the supplier to run a material close to your normal specification. Review the sheet length, flatness, edge condition, stacking quality, and changeover steps.
A line may meet its technical specifications and still be difficult to use.
I look at the operator’s daily tasks:
A line that saves ten minutes on every setup may provide more value than a 5% reduction in the purchase quote. The effect becomes larger when the machine runs several shifts each week.
Training also matters. Ask what documents are included, what type of training is provided, and which spare parts are recommended for normal maintenance.
A low price may not reflect the full cost of ownership.
Before approving a supplier, I would ask about:
These questions do not require complex calculations. They help show whether the supplier can support the line after delivery.
A written answer is easier to compare than a verbal promise. Keep the equipment list, technical parameters, delivery scope, and service terms in the same document.
A basic comparison can include:
Total operating cost = purchase price + installation + training + maintenance + energy + scrap + downtime
A 5% discount reduces only one part of this calculation.
For example, a line priced at $400,000 with a 5% reduction saves $20,000 on the quoted equipment price. If the line later creates additional scrap, requires long manual setup, or has limited service support, that saving may not represent the best financial result.
This does not mean a discount has no value. It means the discount should be reviewed beside production capacity, material use, maintenance, and support.
A useful proposal should show more than a machine name and a total price.
I would request:
The testing method deserves special attention. Ask which material will be used, which length will be tested, how accuracy will be measured, and what happens if the result does not meet the agreed requirement.
Clear terms reduce confusion during acceptance.
A 5% reduction can help when the line already fits your material range, output needs, quality targets, and service plan.
It should not be the main reason to select a line.
I would rather choose a machine that matches the production process than save a small amount on equipment that creates daily losses. A sound decision comes from checking the line section by section, measuring current waste, reviewing operator workload, and comparing support terms with the quoted price.
A lower purchase price is easy to see. Stable feeding, consistent sheet quality, and manageable maintenance shape the result over many production cycles.
A cut-to-length error can turn a small measuring problem into wasted material, delayed orders, and extra labor. I have seen this happen with metal bars, pipes, wire, wood, film, and other continuous materials. The finished pieces may look close to the required size, yet a small difference can cause trouble during assembly.
The good news is that most length errors come from a limited set of causes. Once I separate measurement issues from machine issues, the repair process becomes much easier to manage.
A cut-to-length problem may appear in several ways:
Each pattern points to a different source. A constant error often comes from an incorrect offset or tool position. A growing error may come from slippage, feed measurement problems, or material movement.
I do not recommend changing machine settings at random. That can hide the original problem and create a second one.
The machine may measure from the wrong point. The reference could be the blade edge, the tool center, the material stop, or the end of a feed roller.
For example, if the control system measures from the rear edge of a cutting blade while the operator checks the front edge, every piece can carry the same length difference. A 2 mm offset may seem small, but it affects the full batch.
I check the machine drawing, setup instructions, and actual measuring point before making any adjustment.

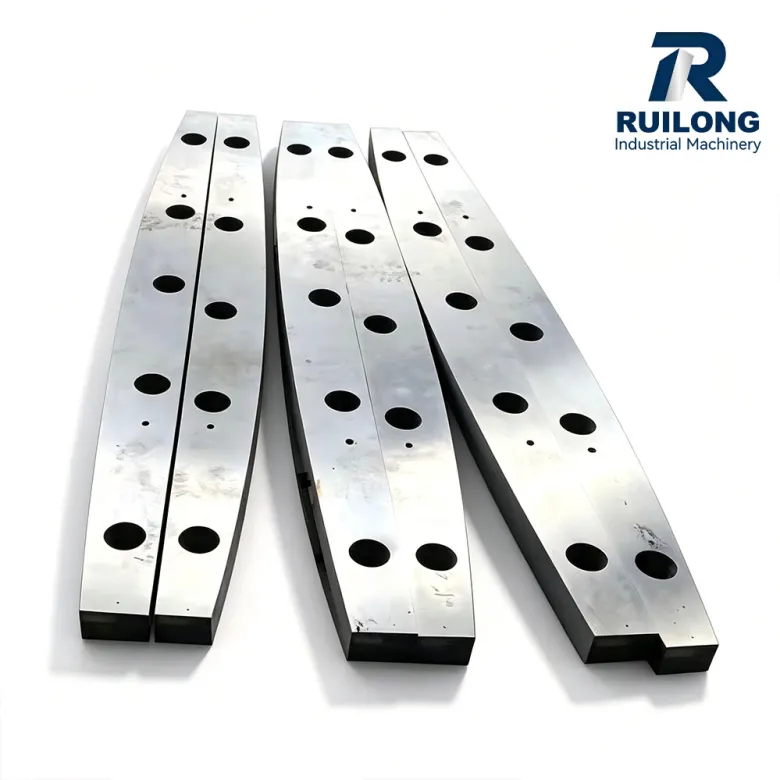

A worn blade can change the cut position and leave a rough edge. The tool may also bend, move, or pull the material during the cut.
With soft materials, wear may cause compression before cutting. With metal, the blade can create a burr that makes the finished length difficult to measure. A damaged tool may also increase heat, vibration, and cutting resistance.
I inspect the blade condition, mounting bolts, guide surfaces, and cutting clearance. Replacing the blade may solve the issue, but only after I confirm that wear is the actual cause.
Feed rollers need enough pressure to move the material without crushing it. Low pressure can allow slip. Excessive pressure can deform the material and affect the measured length.
Dust, oil, moisture, and surface coatings can reduce grip. A round tube may rotate during feeding, while a flexible cable can stretch slightly before it reaches the cutting point.
I mark the material with a small line before feeding it through the machine. If the line moves in relation to the roller, the material is slipping.
The machine may report that it has fed 500 mm, while the material has moved 496 mm. This can happen when the encoder setting, roller diameter, pulse value, or measuring wheel is incorrect.
Calibration errors often appear after:
I compare the machine reading with a certified ruler, gauge, or suitable measuring device. I take several readings instead of relying on one test cut.
Some materials change length after feeding or cutting. Metal strip may relax after tension is released. Rubber, cable, fabric, and flexible film may stretch during feeding and return closer to their original length afterward.
The measurement method must match the material condition. If I measure a flexible cable while pulling it tight, the result may not represent its installed length.
I record whether the material is measured under tension, at rest, warm, cold, straight, or curved. This detail can explain an error that seems random.
If the material enters the machine at an angle, the cut may not be square. The longest side and shortest side will show different measurements.
Alignment problems can come from:
I check the path from the material source to the cutting point. A straight feed path reduces side pressure and makes the cut easier to control.
I use a simple test sequence.
Write down the programmed size, the measured size, the material type, the tool used, and the machine setting. Avoid relying on memory.
A useful record may look like this:
| Item | Result |
|---|---|
| Programmed length | 500 mm |
| Measured length | 496 mm |
| Difference | -4 mm |
| Material | Aluminum tube |
| Test quantity | 10 pieces |
| Measurement point | Outside edge |
The table makes the error easier to compare across different runs.
Cut three to ten pieces under the same conditions. Check whether the difference stays the same.
A repeated 4 mm difference suggests an offset or calibration issue. A result that changes from 1 mm to 7 mm may point to feeding, alignment, or material tension.
A damaged tape measure, worn caliper, or incorrect zero position can create a false machine problem. I compare the tool with another suitable measuring device and check the zero before measuring.
For precision work, I use the measurement method required by the product drawing. Outside diameter, inside diameter, and overall length are not interchangeable references.
I look at the material entry point, feed rollers, guides, encoder, stop, blade, and support table. I remove buildup only with a method that suits the material and machine.
Loose parts need attention before calibration. Calibrating a machine with a moving guide usually produces a temporary result.
Change one setting at a time. If the parts are 4 mm too short, I adjust the relevant offset by the confirmed amount, then repeat the test.
I avoid making a large correction based on one measurement. Small controlled changes protect the machine and make the result easier to trace.
A short inspection routine can prevent many repeated problems.
I also prefer a process limit that matches the product requirement. A tolerance of ±1 mm may be suitable for one product and unsuitable for another. The correct limit should come from the drawing, customer specification, or assembly need.
Imagine a shop cutting 1,000 mm aluminum profiles. The first five pieces measure between 999 and 1,001 mm. After several hours, the pieces measure 996 to 998 mm.
This pattern does not look like a fixed blade offset. A gradual change may come from feed roller slip, material buildup, or encoder drift. The operator could check the roller surface, clean the contact area, compare machine feed distance with a marked profile, and inspect the encoder connection.
A different case would be ten pieces that all measure 1,004 mm. That pattern points more toward a fixed offset, a wrong reference point, or a setup value that was entered incorrectly.
The pattern of the error often tells me where to look before I touch the settings.
Some issues need a qualified technician, especially when the problem involves electrical controls, servo calibration, safety guards, or damaged structural parts.
I stop the machine when I find:
Production speed should not come before safe operation. A length problem can be corrected later; an unsafe machine can create a much more serious risk.
When I handle a cut-to-length issue, I focus on the error pattern, the measurement method, and the material path. These three points usually narrow the search quickly.
A fixed error calls for an offset or reference check. A changing error calls for feed, alignment, tension, or tool inspection. A difference between machine data and physical measurement calls for calibration review.
Clear records, controlled tests, and regular checks help keep the process stable without relying on guesswork.
