Don’t Settle for Rough Cuts in Slitting Lines

September 26, 2026

Don’t settle for rough cuts in your Slitting Lines. Clean, precise edges and consistent performance are essential for reducing material waste, minimizing downtime, and maintaining efficient production. Choose reliable slitting solutions engineered for superior cutting quality, stable operation, and long-term efficiency—so every roll meets your standards and your production process stays on track.



Smooth Cuts, Better Results: Upgrade Your Slitting Line



A slitting line can look productive on paper while creating hidden losses on the shop floor. Uneven slit widths, rough edges, web breaks, dust, setup delays, and material waste can affect both output and customer satisfaction.

I have seen many processors focus on line speed before checking the parts that control cut quality. A faster line does not solve poor tension control or worn knives. It can make those problems harder to manage.

A better upgrade starts with the cutting process itself.

Check the problems before choosing new parts

I begin by reviewing the material, thickness range, coil width, target strip width, and production speed. These details show whether the main issue comes from the knives, tension system, recoiler, operator setup, or material handling.

Useful questions include:

  • Are the slit widths consistent across the full coil?
  • Do the edges show burrs, cracks, or rough surfaces?
  • Does the web break during acceleration or deceleration?
  • How much trim waste is produced?
  • How long does each setup take?
  • Does the line handle every planned material grade?
  • Are operators adjusting tension by feel?

A short production record can provide useful answers. I suggest tracking coil number, material thickness, slit width, speed, knife condition, tension settings, waste, and any quality defects. This gives the upgrade a practical starting point.

Improve knife performance

The knife set has a direct effect on edge quality. Incorrect overlap, side clearance, poor sharpening, or uneven mounting can create burrs and unstable cuts.

When I review a slitting setup, I check:

  • Knife material and hardness
  • Upper and lower knife diameter
  • Knife overlap and side clearance
  • Spacer accuracy
  • Shaft runout
  • Knife holder condition
  • Sharpening quality
  • Changeover method

The correct setting depends on the material. Thin aluminum, stainless steel, carbon steel, film, and coated strip each respond differently. A setting that works for one product may damage another.

Quick-change knife holders and accurate spacers can reduce setup variation. They also help operators repeat a proven setup instead of rebuilding it from memory.

Control web tension across the line

Stable tension helps the strip stay aligned as it passes through the knives and recoiler. If tension changes from one section to another, the line may produce telescoped coils, loose wraps, wrinkles, or broken edges.

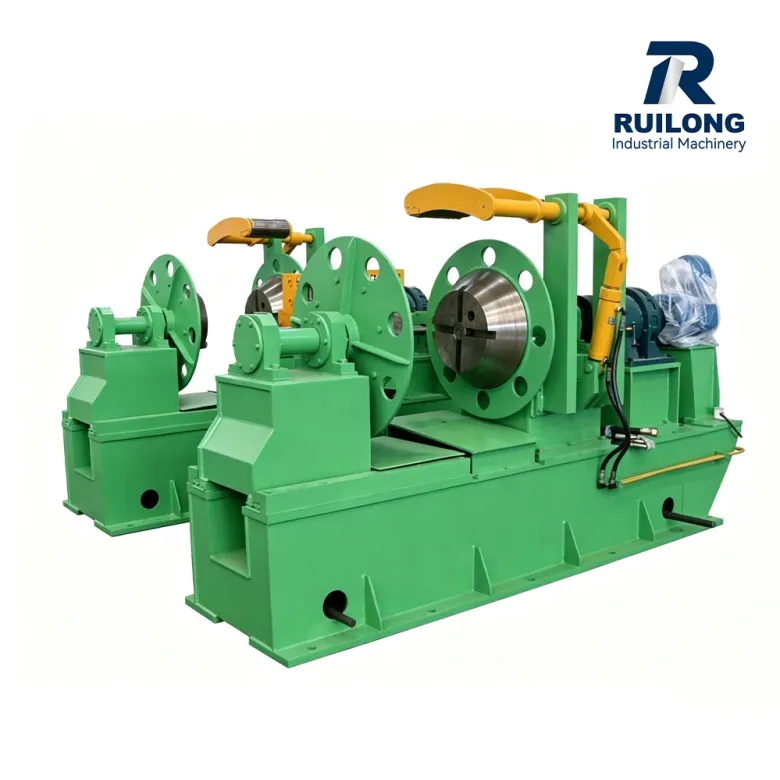

I look at the payoff reel, entry section, slitter section, and recoiler as one connected system. The control settings should work together rather than being adjusted separately without a clear record.

A useful tension review covers:

  • Payoff braking response
  • Entry pinch roll pressure
  • Tension sensor accuracy
  • Loop control
  • Recoiler torque
  • Acceleration and deceleration settings
  • Material width and thickness changes

For a thin strip, a small tension error can affect coil shape quickly. For heavier material, insufficient torque may cause loose winding or slipping. The goal is not simply higher tension. The goal is steady tension that matches the material and coil size.

Reduce setup variation

Many quality problems begin during changeover. An operator may install the correct knives but use the wrong spacer combination, incorrect overlap, or an old tension value.

I prefer a setup sheet for each common product group. The sheet can include:

  1. Material grade
  2. Thickness range
  3. Incoming coil width
  4. Target strip widths
  5. Knife arrangement
  6. Spacer sizes
  7. Overlap and clearance settings
  8. Recommended line speed
  9. Payoff and recoiler tension
  10. Inspection points

A digital setup record can make the process easier to repeat. It does not replace operator skill. It gives the operator a reliable reference and makes abnormal results easier to trace.

Upgrade inspection at the point of production

A finished coil may look acceptable from a distance while its edges fail during the customer’s next process. I recommend checking the strip during production, not only after the coil is complete.

Common checks include:

  • Slit width at several positions
  • Edge burr height
  • Strip camber
  • Coil telescoping
  • Winding tightness
  • Surface marks
  • Joint or weld condition
  • Trim waste

A simple measurement plan can prevent a full coil from reaching the next process with a hidden defect. The inspection frequency should match the material risk, order requirements, and line stability.

For high-value material, it may be sensible to inspect the beginning, middle, and end of the coil. The exact plan should follow the processor’s quality system and customer specifications.

Match automation to the real bottleneck

Automation can help when it addresses a clear production problem. Automatic knife positioning may reduce setup time. Automatic tension control may improve repeatability. Coil handling equipment may reduce manual work and protect material surfaces.

I do not recommend adding every available function at once. A plant may gain more from accurate spacers and better measurement than from a complex control system that operators do not use well.

A practical upgrade path may include:

  • Knife and spacer replacement
  • Shaft and holder inspection
  • Tension sensor calibration
  • Recoiler control adjustment
  • Setup data storage
  • Automatic positioning
  • Remote diagnostics, where suitable

The right choice depends on the existing line, product mix, maintenance skill, and budget. A clear problem should lead the investment.

Use a real production example

One steel processor I worked with was producing narrow strips from coated coil. The line reached its planned speed, but the customer reported inconsistent edge quality. The team initially suspected the material.

A review found several smaller issues. The knife overlap changed between operators, one spacer set had visible wear, and recoiler tension was adjusted manually for different coil sizes. The processor replaced the worn spacers, checked shaft alignment, created product-based setup sheets, and calibrated the tension sensors.

The line speed stayed within the original operating range. The main improvement came from more repeatable setup and better control of the cutting and winding sections. The processor reported fewer rejected coils and less time spent correcting setup problems. Results will vary by material, equipment condition, and operating practice, so each plant should verify changes with its own production data.

Plan the upgrade around measurable results

Before changing the line, I suggest setting a small group of measurable targets:

  • Slit width tolerance
  • Edge quality requirement
  • Setup time
  • Material waste
  • Coil shape
  • Unplanned stoppages
  • Operator adjustments
  • Maintenance frequency

After the upgrade, compare the same measurements under similar production conditions. This makes it easier to identify which change created value and which setting needs more work.

A smooth slitting process comes from several parts working together. Sharp and correctly positioned knives matter. So do stable tension, accurate spacers, proper recoiler control, clear setup data, and regular inspection.

When I help review a slitting line, I focus on repeatability rather than speed alone. A line that produces consistent edges, stable coils, and predictable setup results gives the production team a stronger base for quality and planning.


Stop Settling for Rough Cuts—Choose Precision



A rough cut can turn a simple project into a costly one.

Edges may need extra sanding. Parts may not fit as planned. Small gaps can appear during assembly, and material waste can grow with every adjustment. I have seen this happen when a cutting job is judged by speed alone instead of fit, finish, and repeatability.

Precision cutting gives each part a clearer purpose. The cut follows the required dimensions, the edge matches the material, and the finished pieces are easier to assemble.

What causes rough cuts?

Several issues can affect the result:

  • A worn blade or cutting tool
  • The wrong speed for the material
  • Excess heat during cutting
  • Poor material support
  • Incorrect file settings
  • Loose measurements or unclear drawings
  • Skipping a sample cut

A cutting machine can follow a file, but it cannot correct an unclear design. Material type and thickness also affect the final edge. A setting that works for thin acrylic may not suit stainless steel, plywood, or thicker aluminum.

That is why I start by checking the material, dimensions, drawing format, and expected edge finish.

I begin with the drawing

Before cutting, I review the file for open lines, duplicate paths, missing dimensions, and scale problems.

A drawing marked in millimeters should not be sent as an inch-based file. A small scale error can affect every part in the batch. I also check hole sizes, corner details, slots, and the spacing between parts.

When a design includes tight tolerances, I ask how the part will be used. A decorative panel may need a clean appearance. A machine bracket may need a close fit. These uses require different cutting settings and inspection points.

Clear information helps reduce rework.

I match the process to the material

Different materials leave different cutting challenges.

Metal may need controlled heat and stable support. Wood can show burn marks or chipped edges when the tool speed is not suitable. Acrylic may melt if the cutting conditions create too much heat. Foam, rubber, and composite sheets can react in their own ways.

I select the cutting method based on:

  • Material type
  • Material thickness
  • Part size
  • Edge requirements
  • Quantity
  • Required dimensional tolerance
  • Post-processing needs

A clean edge is not always created by the same machine or tool. The best choice depends on the job rather than a fixed setting.

I use a sample cut when the fit matters

A small test piece can reveal problems before the full sheet is processed.

For example, a cabinet maker may need a set of panels with slots for connectors. If the slot is slightly narrow, assembly becomes slow. If it is too wide, the joint may feel loose. A sample panel lets the maker check the fit before cutting the full order.

The same approach helps with:

  • Enclosures
  • Brackets
  • Sign panels
  • Gaskets
  • Furniture parts
  • Decorative screens
  • Prototype components

A test cut adds a step, but it can reduce wasted material and repeated adjustments.

I check more than the outside edge

Precision is not only about appearance.

I check key dimensions with suitable measuring tools. Depending on the project, I may review the overall length, hole position, slot width, corner shape, and part-to-part consistency.

For repeated parts, I compare samples from the beginning, middle, and end of the batch. This helps identify changes caused by tool wear, material movement, or machine settings.

An edge can look smooth and still fail to meet the required size. Visual inspection needs to work together with measurement.

Edge quality affects the next stage

A rough edge creates extra work after cutting.

Sanding may remove too much material. Deburring may change a small feature. Heat marks may require cleaning or refinishing. In some projects, the edge will remain visible, so post-processing can affect the final look.

I discuss the expected finish before production:

  • Raw cut edge
  • Light deburring
  • Sanded edge
  • Polished edge
  • Painted or coated surface
  • Edge prepared for welding or assembly

This keeps the cutting plan connected to the finished product.

A practical example

Imagine a small workshop making metal mounting plates for electrical equipment. The original plates are cut quickly, but the holes vary slightly from one piece to another. During assembly, workers enlarge some holes by hand and discard a few plates.

The problem may not be the assembly team. It may begin with an unclear drawing, unsuitable cutting settings, or a lack of sample inspection.

A better workflow would include:

  1. Confirming the material grade and thickness
  2. Checking the drawing scale and hole positions
  3. Cutting one sample plate
  4. Testing it against the mounting points
  5. Adjusting the file or machine settings
  6. Producing the batch
  7. Measuring selected parts during production

This process gives the workshop more control and reduces manual correction.

What I need from a customer

I can work more accurately when the project details are clear. Useful information includes:

  • Material type
  • Material thickness
  • File format
  • Part dimensions
  • Quantity
  • Tolerance requirements
  • Edge finish
  • Surface treatment
  • Delivery or assembly needs

A sketch can be enough for an early discussion. A production order usually needs a confirmed drawing with dimensions and revision details.

If the design is still changing, I prefer to treat it as a sample or prototype project. That makes the production stage easier to manage.

Precision is a process, not a label

A clean cut comes from several connected decisions: accurate files, suitable tools, stable material support, controlled settings, sample testing, and careful inspection.

I do not view precision as a claim printed on a page. I see it in the fit of the parts, the consistency of repeated pieces, and the amount of correction needed after cutting.

When a project needs a clean edge and reliable dimensions, rough cuts are not a small inconvenience. They can affect labor, material use, assembly time, and the appearance of the finished product. A measured cutting process gives each part a better chance to perform as planned.


Sharper Slits, Less Waste, Better Performance



A clean slit can change the whole production result.

When a blade cuts unevenly, I usually see the same problems: rough edges, dust, material loss, web breaks, and extra inspection work. These issues may look small at the start, yet they can affect machine speed, product appearance, and operating cost across a full production run.

Sharper slitting blades help create a more stable cutting process. The blade enters the material with less resistance, which supports a smoother edge and reduces the pressure placed on the web.

Why blade sharpness matters

A dull blade does not always stop production. It may keep running while creating small defects that are harder to detect.

I may notice:

  • Frayed or crushed edges
  • Uneven slit widths
  • More dust around the cutting area
  • Higher tension changes
  • More frequent web breaks
  • Extra trim waste
  • Shorter operating intervals between adjustments

These problems often lead to rework. A roll may need to be checked again, trimmed again, or held back from shipment. The blade is only one part of the process, yet its condition can affect every roll that passes through the machine.

A sharp blade makes a clean cut with less force. That supports better edge quality and helps operators keep the process steady.

Less waste starts at the cutting point

Material waste does not come only from large production errors. Small edge losses can build up over many rolls.

For example, a packaging converter may run several hundred rolls in one month. If each roll loses a small amount from uneven edges or repeated setup cuts, the total waste becomes easy to notice. The converter may also spend more time removing trim, checking roll edges, and adjusting the machine.

A well-matched slitting blade can help reduce these losses by producing a more consistent cut. The result depends on the blade design, material type, machine setup, and operator settings. No blade works the same way on every material.

Film, paper, foil, laminate, adhesive tape, and nonwoven materials each respond differently during slitting. I always look at the material before choosing a blade. Thickness, hardness, stretch, coating, winding tension, and line speed all affect the cutting result.

Better performance comes from the right match

Blade sharpness matters, but sharpness alone does not solve every slitting problem.

I check four areas before recommending a blade:

1. Material condition

A flexible film may stretch during cutting. A coated material may leave residue on the edge. A thick laminate may need a blade with different strength and edge geometry.

The blade should suit the material rather than rely on one general design.

2. Cutting method

Different machines use different cutting methods, such as razor slitting, shear slitting, or score slitting.

The blade angle, edge shape, hardness, and mounting position should match the cutting method. A blade that performs well in a shear setup may not produce the same result in a razor system.

3. Machine settings

Poor blade contact can create defects even when the blade is new.

I pay attention to:

  • Blade overlap
  • Cutting pressure
  • Web tension
  • Line speed
  • Blade alignment
  • Arbor condition
  • Rewinding pressure

A small alignment error can create uneven wear. Excessive pressure may crush the edge or shorten blade life. Low pressure may leave an incomplete cut.

4. Maintenance routine

A blade should be inspected before the edge quality drops. Waiting until the machine produces visible defects may increase waste and downtime.

Operators can record:

  • Running hours
  • Material type
  • Cutting speed
  • Number of rolls completed
  • Edge quality
  • Date of blade replacement

This simple record helps show when performance starts to change. It also makes blade replacement easier to plan around normal production work.

A practical way to check slitting quality

I use a simple inspection routine when reviewing a cutting problem.

I look at the slit edge under good lighting. A smooth edge usually shows a clean and stable cut. Fibers, burrs, white dust, crushed layers, or stretched film point to a possible issue with blade condition or machine setup.

I then compare several rolls rather than checking only one. If the defect appears at the same position on every roll, alignment or blade mounting may be involved. If the defect changes from roll to roll, material tension or blade wear may be part of the cause.

The next step is to check the blade itself. I look for:

  • Edge damage
  • Uneven wear
  • Residue buildup
  • Rust or surface marks
  • Loose mounting
  • Incorrect blade position

Replacing the blade without checking the machine may only provide a short-term change. The same problem can return with the next blade.

A real production lesson

In one common packaging production case, the operator noticed more edge dust and small tears after the line had been running for several shifts. The first response was to lower the machine speed. This reduced the visible problem, but output also fell.

A closer check showed that the blade had collected material residue and was no longer cutting with a stable edge. The blade was replaced, the cutting position was reset, and the web tension was checked. The line returned to its normal speed without relying on a large pressure increase.

The lesson is practical: reducing speed may hide a cutting issue, but it does not always solve the cause. Blade condition and machine settings need to be checked together.

How I choose a slitting blade

I ask for clear production information before selecting a blade:

  • What material is being slit?
  • What is the material thickness?
  • What machine and cutting method are used?
  • What line speed is required?
  • What edge problem is occurring?
  • How long does the current blade run?
  • Is the priority edge quality, service life, or reduced trim loss?

These questions help avoid a poor match. A blade with a longer service life may not be the best option if it creates a rougher edge. A very fine edge may perform well on one film but wear faster on an abrasive coated material.

The right choice balances cutting quality, operating conditions, maintenance needs, and total material use.

Sharp slitting blades are not a replacement for correct machine setup. They work best as part of a complete cutting process. When the blade matches the material, the mounting is accurate, and maintenance is tracked, operators can reduce rough edges, limit avoidable waste, and keep production more stable.

A cleaner cut starts with the small details: the blade edge, the pressure, the alignment, and the way performance is monitored.


Cut Clean, Run Smooth, Produce More



A clean cut is not only about appearance. It affects assembly, material waste, machine load, and the pace of the whole production line.

When I review a cutting process, I often see the same problems: rough edges, uneven dimensions, dust around the work area, frequent blade changes, and short stops that slowly reduce daily output. The machine may still be running, but the process is not running well.

A better result usually comes from several small adjustments working together.

Start with the right cutting setup

The material, thickness, hardness, and shape should match the blade or cutting tool.

A blade designed for thin plastic may not perform well on dense rubber. A tool used for soft wood may create rough edges when it is applied to laminated board. The wrong match can lead to:

  • Burn marks
  • Chipped edges
  • Uneven cuts
  • Extra pressure on the motor
  • Faster tool wear

I check the material before selecting the cutting tool. This step takes little time, yet it can prevent repeated defects during production.

The cutting speed also needs attention. A higher speed does not always create higher output. If the speed is too high, the tool may heat up, the edge may become rough, and operators may need to slow down for inspection or rework.

A stable speed often gives a better balance between cut quality and production flow.

Keep the cutting path stable

Material movement is a common cause of uneven cuts.

If the workpiece shifts during operation, the cutting line may move away from the target position. This problem can appear as a small difference on one piece. Across hundreds of pieces, it can create fitting problems and extra scrap.

I prefer to check these points before production begins:

  1. Is the material placed flat?
  2. Is the support surface clean?
  3. Are clamps or guides holding the workpiece firmly?
  4. Is the cutting path free from loose pieces?
  5. Can the operator reach the controls without changing position?

A stable work area helps the operator maintain the same movement from one piece to the next. It also reduces the need to stop and correct the material by hand.

Use maintenance to protect production flow

A machine does not need to be broken before maintenance becomes useful.

Dust, small chips, loose fasteners, dull blades, and blocked cooling paths can all affect cutting performance. Some problems appear slowly. The cut becomes less clean, the motor sounds different, or the operator needs more pressure to complete the same task.

A practical maintenance routine may include:

  • Cleaning the cutting area after each production period
  • Checking blade sharpness and alignment
  • Inspecting belts, guides, and fasteners
  • Removing dust from ventilation points
  • Lubricating parts according to the machine manual
  • Recording repeated faults and adjustment times

The record matters. If the same fault appears several times in one week, replacing a small part or changing the setup may be more useful than making temporary adjustments every day.

Reduce waste through better preparation

Material waste often begins before the machine starts.

A cutting plan can help operators place patterns or parts with less unused space. The plan should also allow enough room for the cutting tool and safe handling. A layout that saves material but makes the operator work in an unsafe or awkward position can create new problems.

For example, a small packaging workshop cutting foam inserts may find that a better layout reduces offcuts. The workshop may also notice fewer position errors because the operator no longer rotates the material several times during one cycle.

The exact result depends on the material, tool, part shape, and machine settings. Measuring the actual waste before and after a layout change gives a more useful answer than relying on assumptions.

Train for repeatable work

Good equipment still needs consistent operation.

I recommend creating a short work guide that shows:

  • The correct material position
  • The approved speed range
  • The inspection points
  • The safe method for tool changes
  • The response to an uneven or rough cut

The guide does not need to be complicated. Clear photos and short instructions are often easier to use than a long document.

Operators should also know when to stop and report a problem. Continuing to run a machine with a damaged blade or unstable guide can increase waste and place extra stress on other parts.

Measure the process, not only the machine

Production output should be viewed together with quality.

Useful figures may include:

  • Good pieces produced per hour
  • Material waste
  • Rework quantity
  • Tool replacement frequency
  • Average adjustment time
  • Unplanned machine stops

A machine that produces more pieces but creates more rework may not be improving the process. I look for a balance between clean cuts, steady operation, material use, and operator effort.

Cutting cleanly is the starting point. Smooth production comes from suitable tools, stable handling, regular care, and clear work methods. When these parts support each other, the team can produce more usable parts without relying on excessive speed or rushed operation.


Turn Rough Cuts Into Perfect Slitting Results


A rough slit edge can turn a good roll into a costly production problem. Burrs, dust, uneven widths, edge cracks, and telescoped rolls often come from small setup errors that are easy to miss during a busy shift.

I have found that clean slitting results rarely depend on one setting alone. Blade condition, knife alignment, web tension, material behavior, and rewinding pressure all work together. When I check these points in the right order, rough cuts become easier to control.

Start with the material

Before changing the blades, I check the material itself.

Film, paper, foil, laminate, and nonwoven materials react in different ways. A soft film may stretch around a dull knife. Aluminum foil may tear when the blade angle or overlap is wrong. Paper can create dust when the knife pressure is too high.

I record a few basic details:

  • Material type and thickness
  • Roll width and outside diameter
  • Core size
  • Slitting speed
  • Target slit width
  • Web direction
  • Coating or adhesive condition

A material change can require a new setup, even when the machine uses the same blades. Treating every roll in the same way often creates unstable results.

Check the blades before adjusting pressure

A dull blade does not always look damaged. Small chips, rounded edges, adhesive buildup, or uneven wear can affect the cut.

I inspect the blade under a strong light and clean away residue before judging its condition. If the edge feels rough or shows visible damage, I replace or sharpen it according to the blade supplier’s instructions.

Excessive knife pressure can hide a blade problem for a short period. The machine may appear to cut, but the material can show crushed edges, heat marks, or extra dust. More pressure is not a reliable fix.

A sharp blade with controlled pressure usually produces a cleaner edge and places less stress on the web.

Set the knife position with care

Knife alignment has a direct effect on cut quality.

For shear slitting, I check the overlap and side angle between the upper and lower knives. Too little overlap may leave uncut fibers or a ragged edge. Too much overlap can increase friction, dust, and blade wear.

For razor slitting, I check the blade depth and contact point. A blade that enters too deeply may cut into the roller or create unstable tension near the slit. A blade that enters too lightly may produce intermittent cuts.

I make small adjustments and inspect the edge after each change. Large changes make it hard to identify which setting caused the improvement or the new defect.

Control web tension

Uneven tension often appears as a blade problem.

When tension is too low, the web can move from side to side. The slit width may change, and the cut edge may look rough in sections. When tension is too high, thin materials can stretch before the blade reaches them. The finished roll may then shrink, wrinkle, or show uneven edges after winding.

I measure tension across the working range instead of selecting a value by habit. I watch the material before the knives, at the cutting point, and during rewinding. The web should stay stable without visible flutter.

If one slit looks clean while another looks rough, I inspect the tension balance and knife holder condition. The issue may not affect every position in the same way.

Match rewinding pressure to the material

A clean cut can still lead to a poor finished roll if the winding pressure is not suitable.

Too much winding pressure may crush slit edges, trap air, or create blocking between layers. Too little pressure may cause loose rolls, telescoping, or web movement near the core.

I check:

  • Lay-on roller pressure
  • Winding torque
  • Differential shaft condition
  • Core grip
  • Air removal
  • Roll hardness from the core to the outside diameter

On a flexible packaging line I supported, the slit edges looked acceptable at the knife station but became wavy after rewinding. The main cause was uneven pressure from a worn lay-on roller. Replacing the roller surface and balancing the pressure improved the roll edges without changing the blade setup.

Use a clear inspection routine

I do not rely on visual inspection alone. I compare the slit edge at several points along the roll and keep a record of the findings.

Useful checks include:

  • Slit width measurement
  • Edge burr inspection
  • Dust level
  • Roll hardness
  • Telescoping or dishing
  • Width variation from lane to lane
  • Cut quality at different machine speeds

A small sample from the start, middle, and end of the roll can show whether the problem develops over time. If the edge becomes rough only near the end, blade wear, heat, tension change, or roll pressure may be involved.

Change one setting at a time

When several settings change together, troubleshooting becomes guesswork.

My usual sequence is:

  1. Clean the knives and inspect for damage.
  2. Confirm the material and target slit width.
  3. Check knife alignment and overlap.
  4. Set a stable, moderate web tension.
  5. Adjust rewinding pressure and torque.
  6. Run a short sample.
  7. Measure the slit edge and roll condition.
  8. Record the result before the next adjustment.

This process may take a little longer at the start, but it reduces repeated trial runs and helps operators build a useful setup record for future orders.

Perfect slitting does not come from forcing the material through the machine. It comes from matching the blade system, tension, speed, and winding conditions to the material being processed.

When I see rough cuts, I look for the source instead of increasing pressure without a plan. A clean blade, stable web path, correct overlap, and controlled rewinding setup can turn inconsistent slit rolls into reliable production results.

Contact us today to learn more ruilong: 345085211@qq.com/WhatsApp +8617560872935.


References


  1. European Committee for Standardization, 2019, Safety of Machinery and Risk Assessment Principles

  2. Robert H. Todd, Dell K. Allen and Leo Alting, 1994, Manufacturing Processes Reference Guide

  3. American National Standards Institute, 2020, Industrial Machinery Safety and Operating Practices

  4. Herbert E. Boyer, 1987, Atlas of Fatigue Curves and Material Performance

  5. John A. Schey, 2000, Introduction to Manufacturing Processes

  6. International Organization for Standardization, 2015, Quality Management Systems Fundamentals and Vocabulary

Contact Us

Author:

Mr. ruilong

Phone/WhatsApp:

+86 13953857819

Popular Products
You may also like
Related Information
Coil Slitting Line Speed: 5x Faster, Zero Defects?

Can a coil slitting line really run five

Straightening Machine Myths: Stop Wasting Metal Today

straightening machine Myths: Stop Wasting

Slitting Knife Blade Dull? Here’s the $10k Mistake

A dull slitting knife is more than a minor maintenance issue—it can quietly drain thousands from your operation. Blunt blades create rough or uneven cuts, increase material waste, slow production

5% Accuracy: Why Your Cut To Length Line Fails

A cut-to-length line that misses its target by even 5% can create excessive scrap, production delays, and costly quality issues. This article explores the most common causes of inaccurate cutting,

Related Categories

Email to this supplier

Subject:
Email:
Message:

Your message must be between 20-8000 characters

Company Profile Located at the foot of Mount Tai, we are a professional manufacturer of metal sheet processing equipment with over 20 years of experience, covering a factory area of more than 7,000 square meters with 50+ professional staff. We supply intelligent automatic metal coil processing...
Newsletter
Address
East Tailiang Road, Zhaizi Village, Xujialou Sub-district Office, Taishan District, Taian, Shandong China

Copyright © 2026 Tai'an Ruilong Machinery Co., Ltd. All rights reserved. Privacy Policy

Copyright © 2026 Tai'an Ruilong Machinery Co., Ltd. All rights reserved. Privacy Policy

We will contact you immediately

Fill in more information so that we can get in touch with you faster

Privacy statement: Your privacy is very important to Us. Our company promises not to disclose your personal information to any external company with out your explicit permission.

Send
