Model No.: RL2-5×1800mm Aluminum Coil Film Laminating & Flying Cut-to-Length Line
Video Factory Inspection: Provided
Mechanical Test Report: Provided
Marketing Type: New Product 2020
Core Component Warranty Period: 1 Year
Core Components: Plc, Engine, Bearing, Gearbox, Motor, Pressure Vessel, Gear, Pump
Place Of Origin: China
Status: New
Core Selling Point: High-Accuracy
Warranty Period: 1 Year
Out-of-warranty Service: Video Technical Support, Online Support, Spare Parts, Field Maintenance And Repair Service
Applicable Industry: Construction Works, Manufacturing Plant
Where To Provide Local Services (in Which Countries Are There Overseas Service Outlets): Viet Nam
Showroom Location (in Which Countries Are There Sample Rooms Overseas): Viet Nam
Coil T: 2-5mm
Coil W: 1000-1800mm
Coil WT(T): 20T
Coil ID: 508-610mm
Coil OD: 1600-1800mm
Yield Strength: бs≤220MPa
Tensile Strength: σb≤315MPa
Threading Speed: 10-15m/min
Cut-to-Length: 1000mm ～ 4000mm
Line Speed: 0--40m/min
Flatness: ≤±1.0mm/㎡
Length Tol: ±0.5mm/2m
Diagonal Tol.: ≤±1.mm/2m
Overall Dimensions (L×W×H): ≈33m×8m×2.5m
Weight(T): 55T
Power: ≈172kw
Voltage: 380V/50HZ
Cutting Material: Metal Stainless Steel Carbon Steel Aluminum
Color: as you wish
| Package Type: | Machine device will be naked and all rollers will be antirust treatment to protect the rollers.All the spare parts will be collected into the homemade iron boxes.After loading to the container,it will be fixed by lifting rope. |
|---|
Packaging: Machine device will be naked and all rollers will be antirust treatment to protect the rollers.All the spare parts will be collected into the homemade iron boxes.After loading to the container,it will be fixed by lifting rope.
Transportation: Ocean
Supply Ability: Can produce 3-4 lines per month
Port: Port of Qingdao,Port of Tianjin

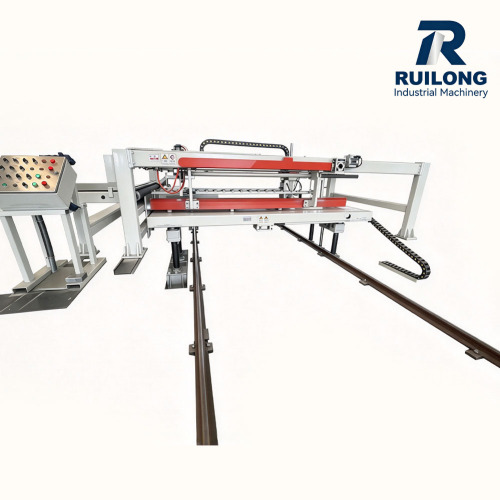

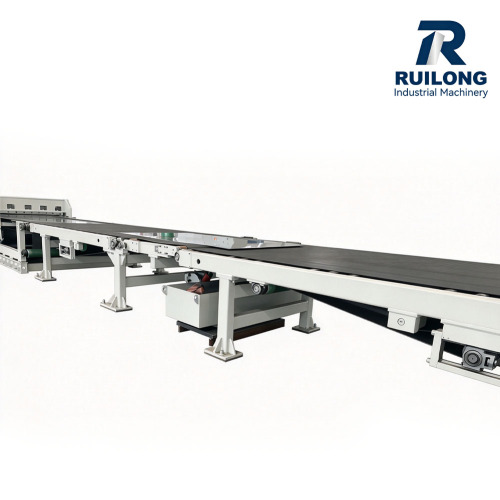

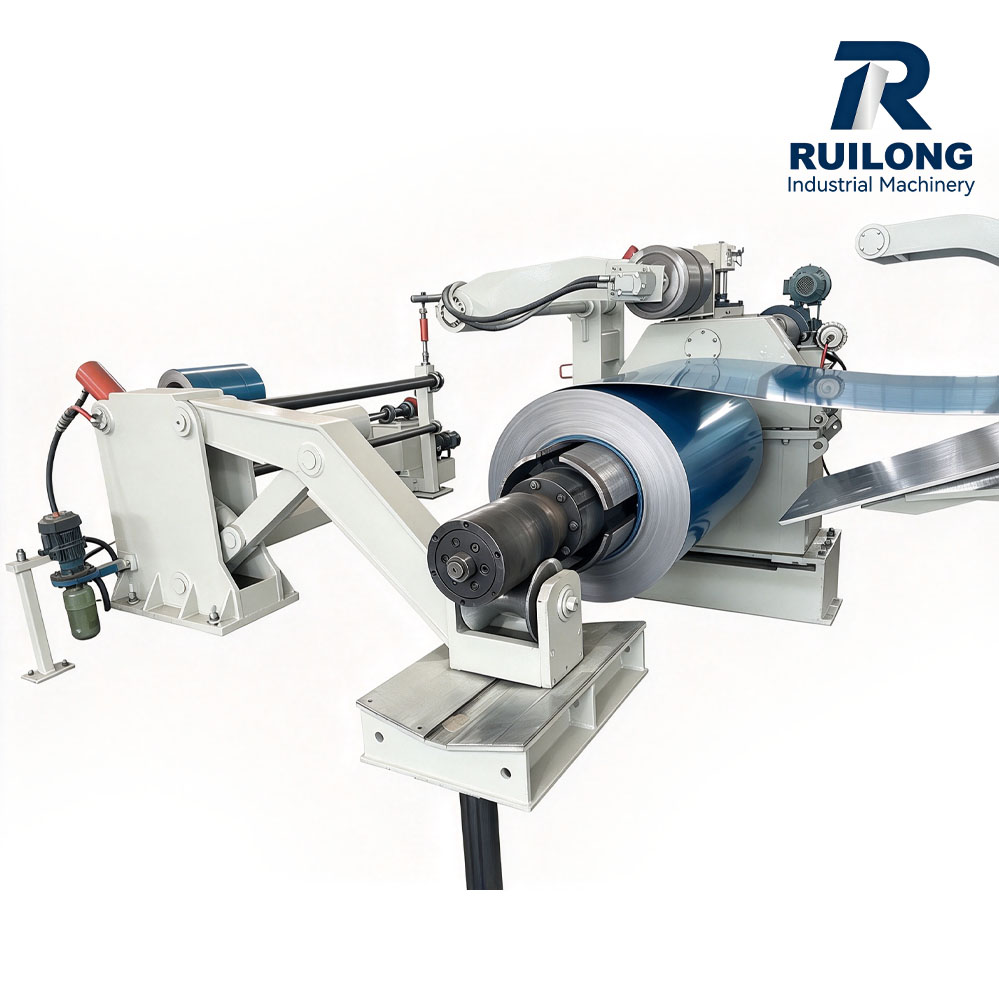

RUILONG 2-5×1800mm aluminum coil film laminating flying cut-to-length line is specially designed for aluminum coil with thickness 2–5mm and max width 1800mm. This line integrates unwinding, protective film laminating, multi-roll precision leveling, flying shear fixed-length cutting, conveying and finished sheet stacking into one automatic production system.

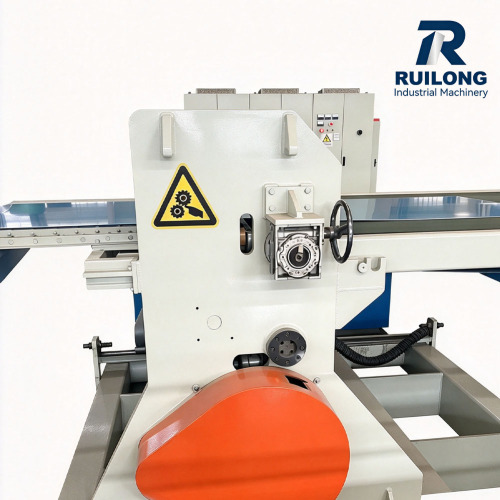

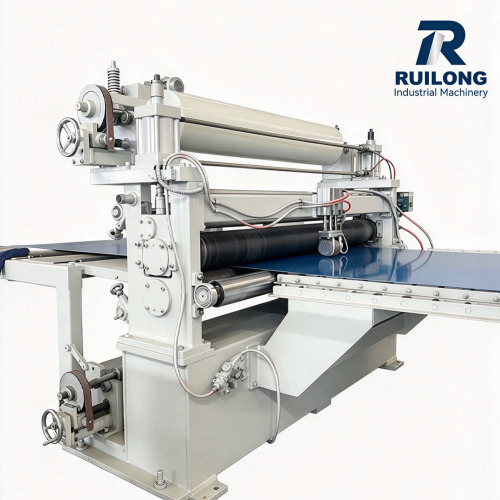

Adopting flying shear technology, the machine cuts sheets without stopping coil feeding, realizing continuous high-speed production. Equipped with online film laminating unit, it sticks protective film on aluminum surface during processing to prevent scratches and preserve the bright surface of aluminum sheets, ideal for architectural and decorative aluminum panels.

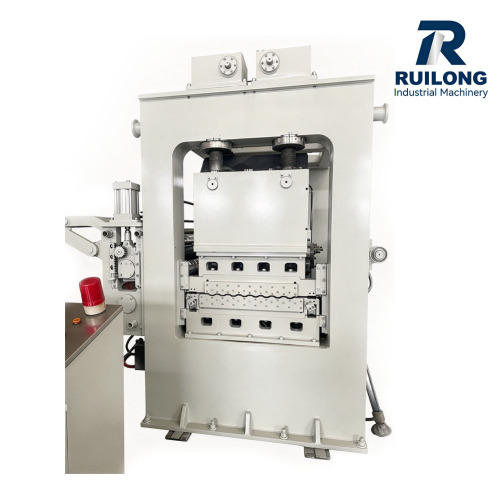

The multi-roll precision leveler releases internal stress of aluminum coil, corrects wave and camber to guarantee excellent flatness. Controlled by PLC + touch screen numerical system with servo length positioning, it achieves high cutting dimensional accuracy.
Architectural curtain wall aluminum panel, decorative aluminum sheet, aluminum sign board, home appliance aluminum plate, carriage aluminum sheet and metal decoration fabrication factories.
Full machine test before shipment; on-site installation & commissioning, operator training; long-term technical support and spare parts supply. Please send your aluminum coil specifications, we will prepare customized solution and quotation.
